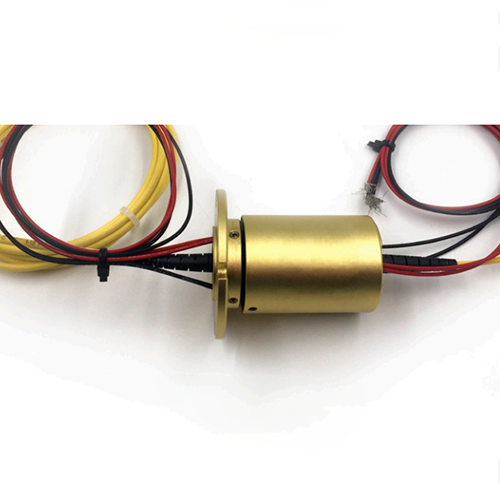

SRD1-33 Electro-Optical Slip Ring

Product Introduction

The SRD1-33 Electro-Optical Slip Ring can simultaneously transmit 1 fiber optic channel and 1-24 electrical channels . The electrical channels support signals (5A) and voltage 600VAC/VDC. It is resistant to electromagnetic interference and is suitable for places that require unlimited continuous or intermittent rotation while also needing to transmit capacity data and signals in a fixed position.

Main Technical Performance

Indicator Name		Value
Bandwidth		±50nm
Insertion Loss (Room Temperature)		≤ 1.5dB
Insertion Loss Fluctuation		≤ 0.7dB
Return Loss		≥ 40dB (SM)
Input Power		0.5W
Rotation Speed		0~1000rpm
Estimated Lifetime		> 200 million revolutions
Operating Temperature		-20 ～ 60℃ (-40 ～ 85℃ optional)
Storage Temperature		-45 ～ 80℃
Mec ha nica l Tec h nica l S pecificatio ns		Elect rica l Tec h nica l S pecificatio ns
Parameters	Value	Parameters	Value
Working life	20 million revolutions		Power	Signal
Rotation Speed	250RPM	Rated voltage	0 ～ 440VAC/VDC	0 ～ 440VAC/VDC
Operating temperature	-30℃～ 80℃	Insulation resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Operating humidity	0 ～ 85% RH	Wire specification	AWG22	AWG22
Contact material	Gold-Gold	Wire length	Standard length 300mm (adjustable as required)
Housing material	Aluminum alloy	Insulation strength	500VAC@50Hz，60s
Rotational torque	0.1N.m；+0.03N.m/6 paths	Dynamic resistance change value	<0.01Ω
Protection class	IP54

Note : N 10A current loops can be com bined as 1 channel of N* 10A current loops; for example, 2 loops of 10A can be combined as 1 channel of 20A . Customization is available according to customer require ments. Please contact customer service for assistance with selection.

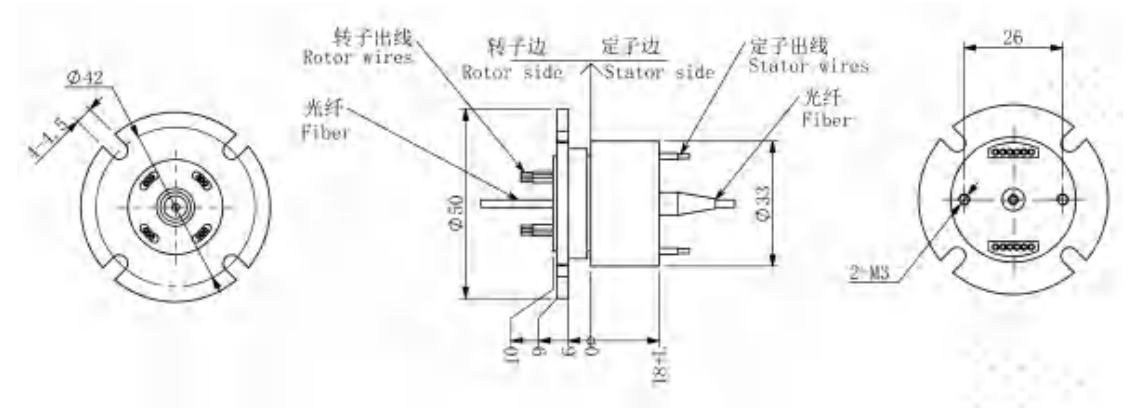

SRD1-33 Dimensions

SRD1-33 Dimensions.png
