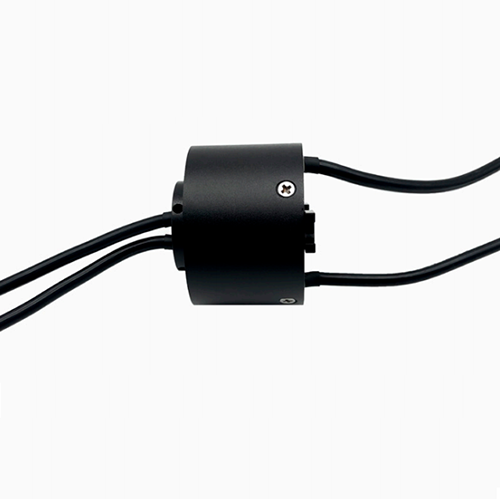

HXZ-56-2D Conductive Slip Ring

Product Introduction

This slip ring features a modular design with 2 circuits, including 2 power circuits rated at 30A. It has a compact structure with a length of 38mm, secured by a 12mm wide stop ring for integrated installation.

This product is primarily used in tethered drones, characterized by its simple installation and short production cycle.

Main Technical Performance

Specifications Sheet

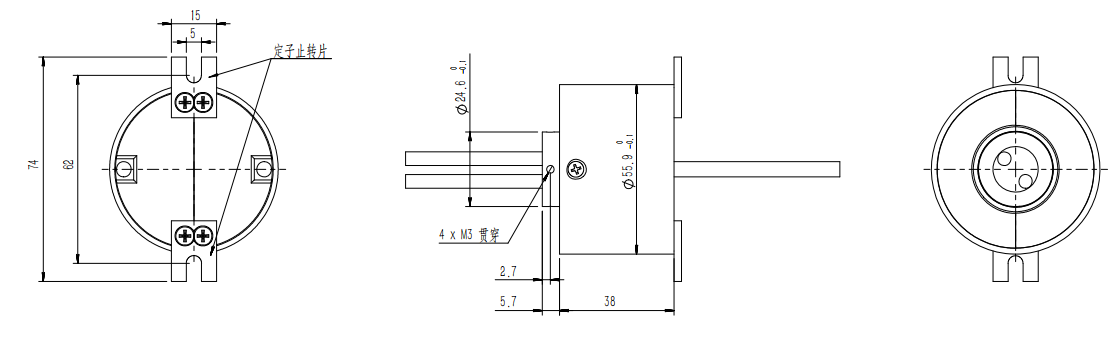

Model	Circuits	Length	Main Body Outer Diameter
HXZ-56-2D	2	43.7	55.9
Conductive Parameters
Operating Voltage		0-1000VAC/DC
Operating Current		30A
Electrical Noise		≤5mΩ@6VDC,50mA(at 250rpm)
Contact Resistance Variation		≤10mΩ
Dielectric Strength		1800VAC@50Hz，60s
Insulation Resistance		500MΩ/1000V/DCDC
Wire Specifications		4mm² Silicone Rubber Wire
Wire Length		Stator 300mm ；Rotor 300mm
Mechanical Parameters
Operating Temperature		-40℃～ +55℃
Operating Speed		0 ～ 250rpm
Service Life		≥1 million revolutions
Protection Class		IP51
Conductive Contact Material		Precious metals
Housing Material		Aluminum alloy + engineering plastics
